Solar MC4 Connector: Check the Locking Tab Before It Snaps

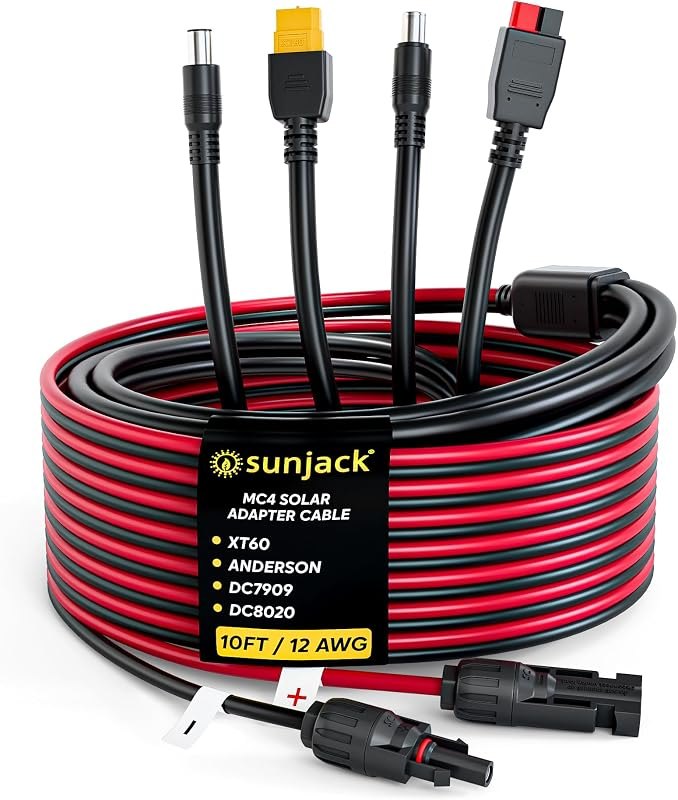

This 12AWG, 10-foot cable bridges the gap between a standard solar array and a portable power station, specifically targeting the MC4 to proprietary port conversion. The gauge is critical here because thin wire will heat up under load, so the 12AWG specification is the baseline for safe current transfer.

Check the photo for the strain relief boot where the wire enters the MC4 connector. This is the first point of failure; if the rubber boot is cracked or the wire is pinched at the entry point, the connection will loosen over time and cause intermittent power loss.

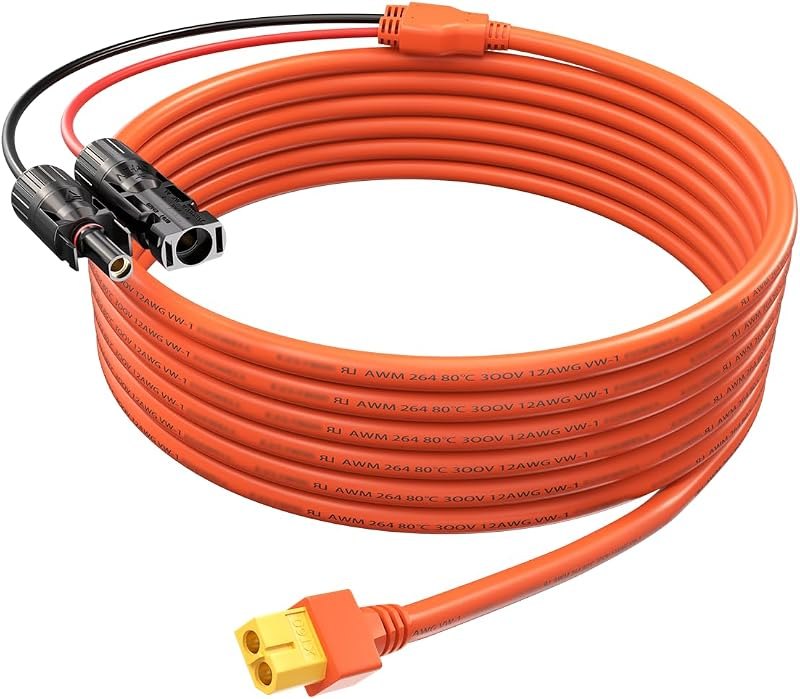

Designed for Ecoflow River and Delta series, this 12AWG, 10-foot cable converts an MC4 solar input to an XT60 plug. The compatibility string is specific, so ensure your unit actually uses the XT60 port before assuming this fits your setup.

Look closely at the XT60 plug in the listing image. The plastic housing around the metal pins is prone to cracking if the cable is bent sharply. A hairline fracture in this housing is the first sign of failure, leading to a loose fit that generates heat at the contact points.

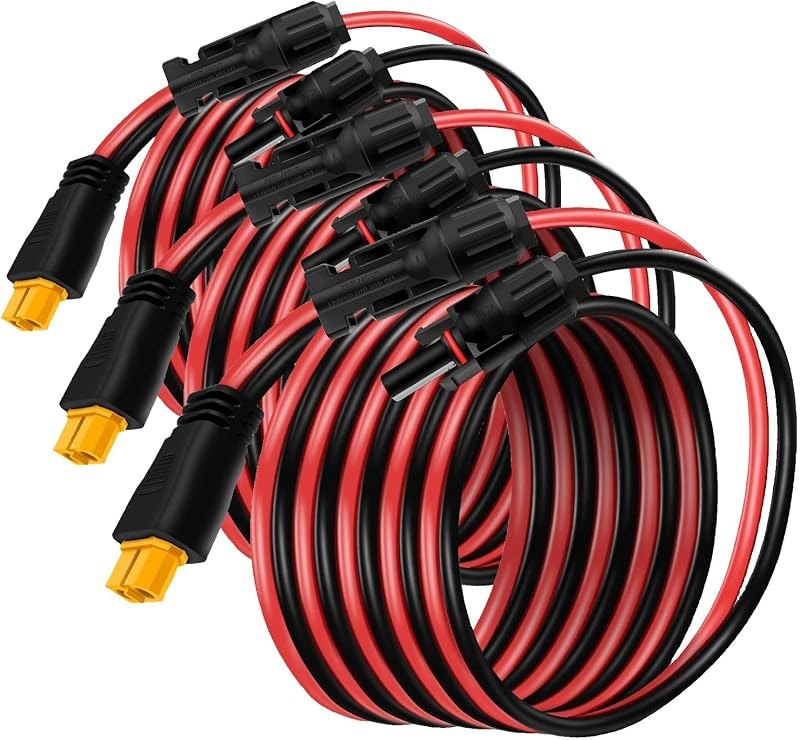

This 12AWG, 10-foot extension is labeled for Anker SOLIX and Ecoflow systems, converting MC4 to XT60. The 12AWG rating supports standard solar charging currents without excessive voltage drop over the 10-foot length.

Inspect the MC4 female end in the photo. The internal spring contacts are the weak point; if they appear bent or discolored in the image, they will not grip the male pins securely. A poor grip here is the primary cause of connection failure in this type of adapter.

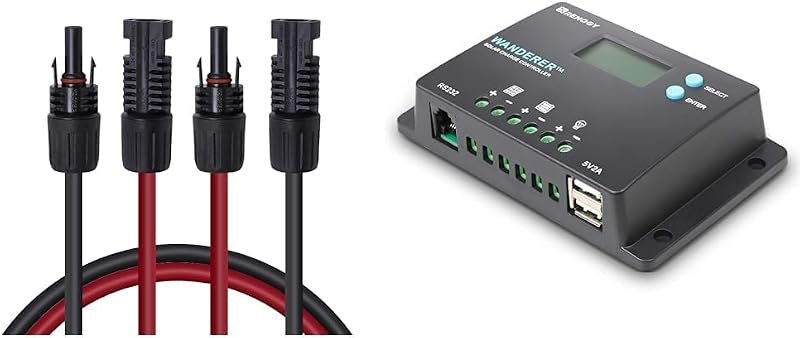

This Renogy pair offers 20 feet of 12AWG wire with both male and female MC4 connectors, intended for extending the reach from panels to a charge controller. The 10 Amp, 12V/24V PWM specification indicates it is sized for smaller residential or off-grid setups.

Focus on the crimp points where the wire meets the MC4 housing in the photo. If the wire strands are not fully seated inside the connector, they will vibrate loose. This is the first mechanical failure point, leading to arcing and eventual burnout of the connector.

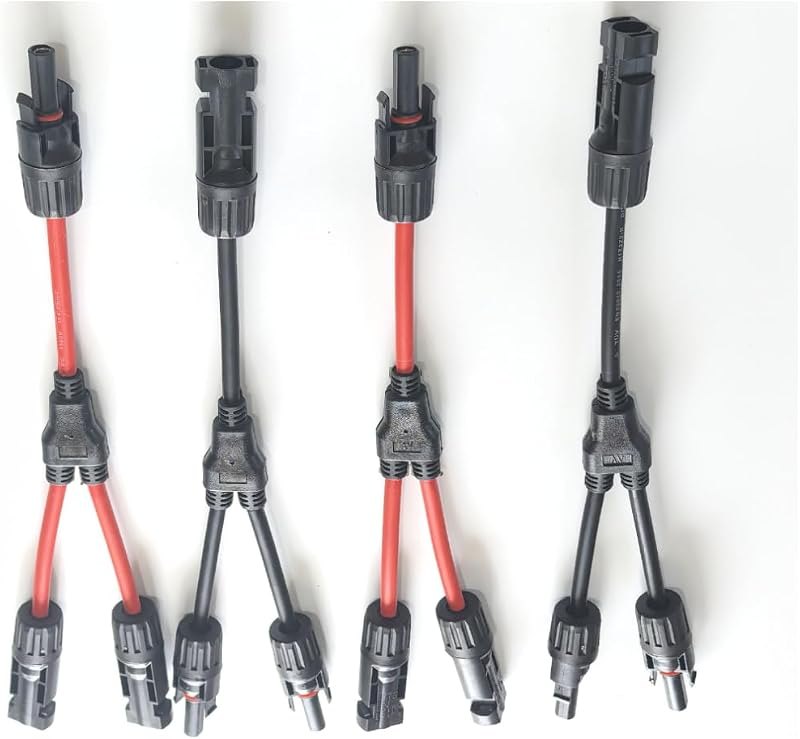

This set of four 30-amp MC4 Y-connectors allows you to branch one input into two parallel outputs for battery plate assembly. The 30-amp rating is the maximum safe current, so do not exceed this limit when wiring multiple panels in parallel.

Examine the plastic housing of the Y-branch in the photo. The stress point where the two output wires exit the main body is where cracks form first. If the plastic looks thin or has visible molding lines, it is likely to split under tension, breaking the parallel connection.

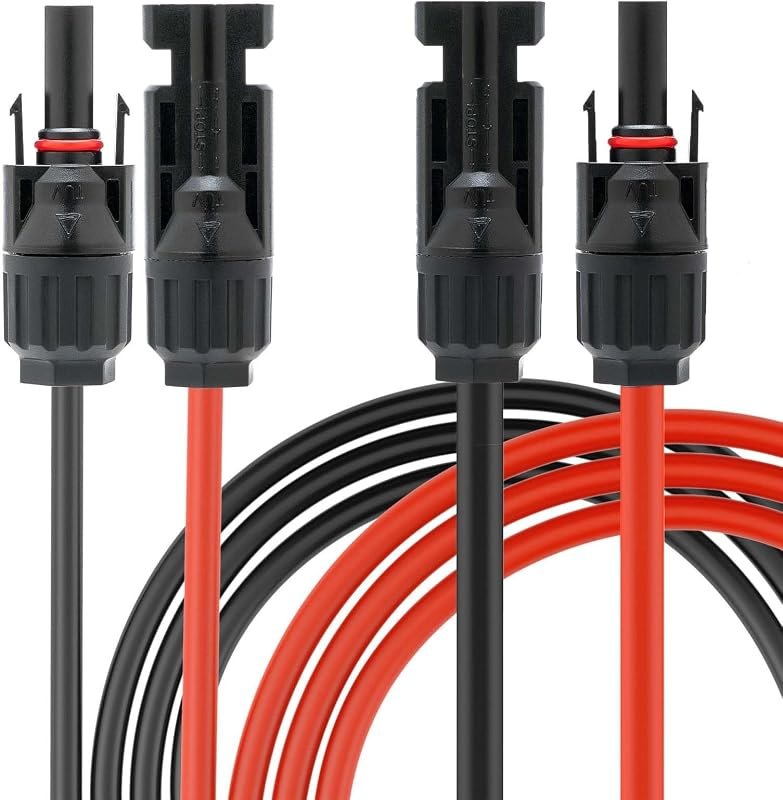

This 10-foot, 10AWG cable is thicker than the standard 12AWG, allowing for higher current capacity and lower resistance. It comes with both male and female MC4 connectors, making it a direct extension for existing solar wiring.

Look at the insulation thickness in the photo. The 10AWG wire should appear noticeably bulkier than 12AWG. If the insulation looks thin or the wire appears kinked, it may not handle the higher amperage safely, leading to overheating at the connector interface.

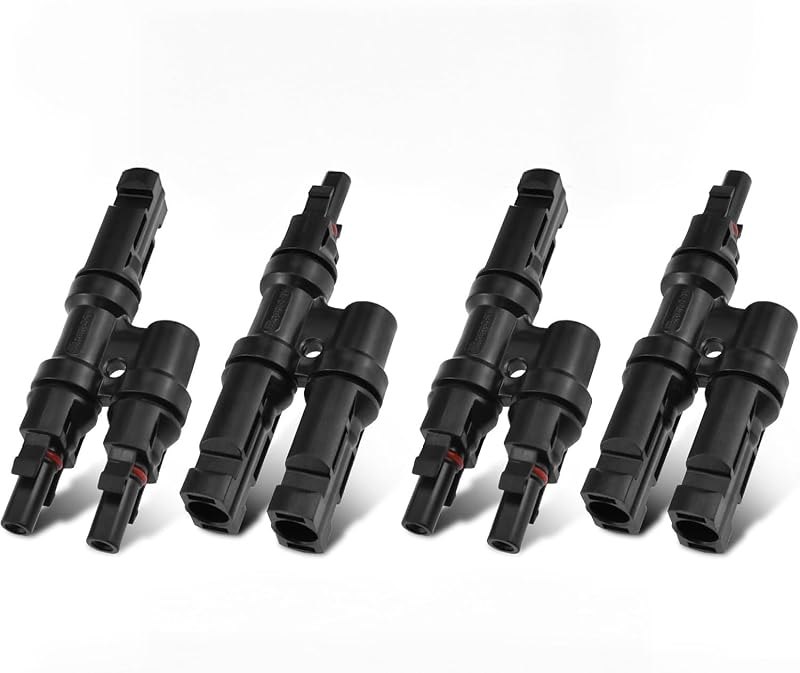

These four M/FF+F/MM branch connectors are designed for parallel connection between solar panels. The mixed gender configuration allows you to chain panels together without needing additional adapters, simplifying the wiring process.

Check the alignment of the pins in the photo. If the male and female pins are not perfectly aligned, the connector will not seat fully. A partial seat is the first failure mode, causing high resistance and heat buildup at the contact points.

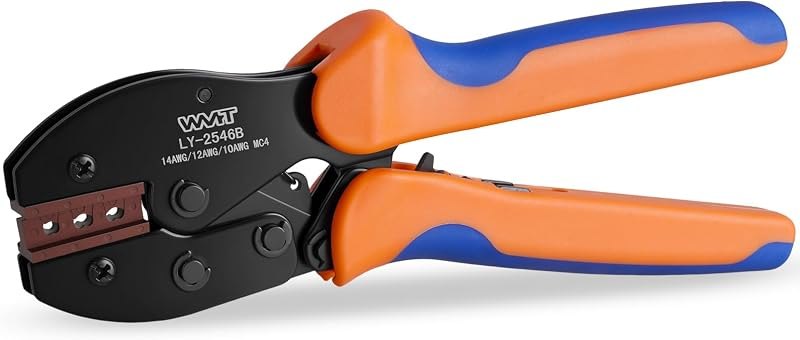

This WMT crimping tool is sized for 2.5-6mm² solar connectors, which covers the standard 10AWG and 12AWG wire gauges. It is a manual tool, so the quality of the crimp depends entirely on the user's technique and the tool's die alignment.

Inspect the die opening in the photo. If the metal jaws are worn or the alignment is off, the crimp will be uneven. An uneven crimp is the first failure point, as it leaves strands of wire exposed to moisture and vibration, leading to corrosion and connection loss.
